All-inclusive Lift Concept
The Kalea A4 Mini is delivered in ready-made elements that include everything you need for installation, even the lift shaft.
Platform lifts
Kalea A4 Mini

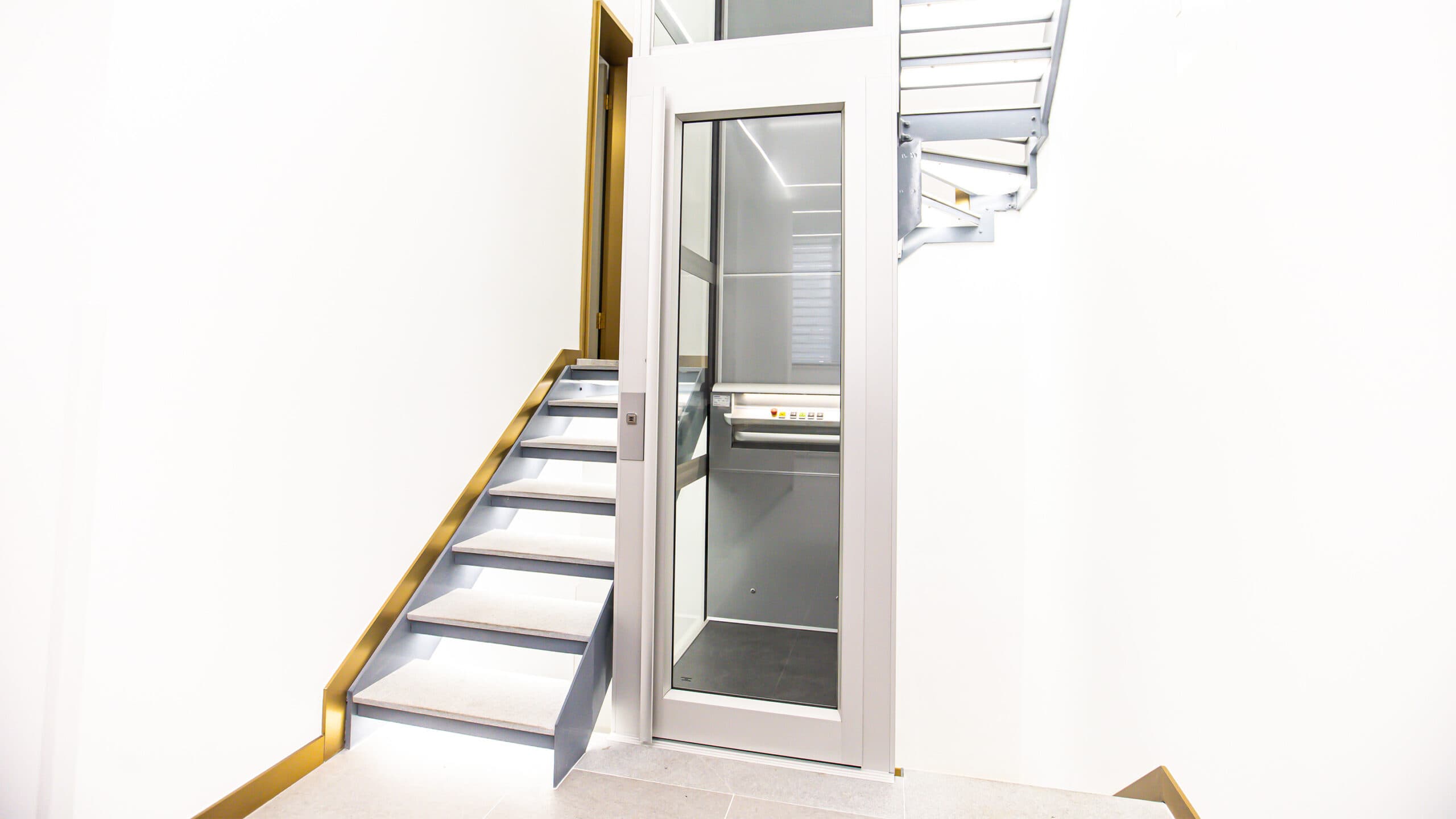

Kalea A4 Mini. A Compact Home Lift.
The Kalea A4 Mini is a residential platform lift with a neutral and contemporary design, created to fit into small and very narrow spaces. That is why it is so easy for this lift to blend in seamlessly with your home and lifestyle. Once you have it, you will never be able to imagine life without it!
Plug & Play Electrics
All electrics are plug and play and your Kalea home lift runs on standard household electricity. No electrical adaptation is necessary.
A Lift for Tiny Spaces
The Kalea A4 Mini is so small that it can be fitted in a space 1 m2. I you have room for a closet, you have room enough for a lift.
Installation in 2-3 days
Thanks to our ready-made, low-impact lift concept, lift installation is fast and easy. Your lift will be installed in just a few days.
This is a Platform Lift
The Kalea A4 Mini is a vertical platform lift. Simply put, a platform lift does not have an enclosed lift cabin. You travel on an open platform in an enclosed lift shaft instead. Platform lifts travel a lower speed than conventional lifts, but offer several other advantages, such as shorter delivery time, faster installation and greater space-efficiency.
Watch the video to get a taste of what the Kalea A4 Mini can do for you!
According to European Standards, hold-to-run platform controls are mandatory, but outside Europe, other regulations may apply. Please contact your Kalea dealer for more information.
Kalea A4 Mini Platform Controls
The platform controls are ergonomic and user-friendly. They include floor buttons, an alarm button and an emergency stop button. In addition, the platform is equipped with safety edges, an emergency telephone and battery emergency lowering as standard.
According to European Standards, the floor buttons need to be operated by hold-to-run (constant pressure on the button), while the call buttons on the doors are operated with automatic drive (one-touch). Countries outside of Europe may allow platform controls with automatic drive. Please contact us, or your closest Kalea dealer, for more information.
Home Lift Small enough to Fit Inside a Closet
If you have room for a wardrobe, you have room for the Kalea A4 Mini. In fact, the smallest size of this residential platform lift fits in 1m2!
Do you need a small lift but want a more contemporary and edgy design? Then Kalea Luna, is a great alternative.
Lifts for Any Staircase
The centre of the staircase is often the perfect place to install a Kalea platform lift. Thanks to their space-saving construction and wide range of sizes, our platform elevators can adapt to almost any space.
Specifications and model details
Technical information
- Installation:Indoor
- Rated load:300 kg
- Power supply:1 × 230 VAC, 50 Hz, 16 A, min. 3 × 2,5 mm², 3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, min. 5 × 2,5 mm²
- Speed:Max 0.15 m/s
- Min headroom:Top floor 2300 mm (full-height door)
- Lift pit:50 mm or 0 mm with access ramp
- Drive system:Screw and nut
- Max travel:15 m
- Max number of stops:6
- Lift controls:Automatic drive (one-touch) on landings, hold-to-run on platform
- Motor Power:2.2 kW
- Machine room:Integrated (MRL)
- Door configuration:Single entry/open-through access/adjacent access
- Directives and standards:MD 2006/42/EC, EN 81-41
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Kalea A4 Mini.
View specifications
