Weather Resistant Lift
Our outdoor lifts are designed for a temperature span of about -10° to +30° Celsius and will resists in very tough weather conditions, such as rain and snow.
Platform lifts
Outdoor Lift
Kalea Outdoor Elevator. Enjoy Outdoor Living.
An outdoor lift creates a seamless flow between the indoors and the outdoors, making it easier and more comfortable than ever to enjoy your garden or terrace. In addition, installing a lift on the outside of the building is a great solution if you do not have enough room for a lift inside. Kalea outdoor elevators come in two wheelchair-friendly sizes and the design is easy to adapt to most architectural styles.
All-inclusive Concept
Your platform lift is delivered in prefabricated elements, as an all-inclusive concept. Every element you need is included, even a ready-made shaft enclosure.
Minimal Footprint
Kalea platform lifts have a very space-efficient construction. In fact, the passenger space constitutes as much as almost 70% of the total footprint of the lift.
Fast Delivery & Installation
Thanks to our ready-made, space-saving lift concept, it is possible for us to manufacture your outdoor lift in just a few weeks and install it in as little as 3-5 days.
Discover our Outdoor Lifts
Our outdoor elevators are available in two wheelchair-friendly sizes: 1000 x 1467 and 1100 x 1467 mm (w x d). The outdoor concept includes the following equipment to ensure that your lift is weather resistant:
- Slanted outdoor roof to protect the lift from rain and snow.
- Rust proof AL5 aluminum doors.
- Door canopies in plexiglas or steel.
- Sealed weather resistant call buttons.
- Sealed glazed shaft panels.
- Bottom frame with anti corrosive coating.
- Electrical compartment with flooding protection.
Our outdoor elevators are designed for a temperature range of approximately -10 °C to +30°C. To handle more extreme climates, we offer additional options for temperature control, such as AC ready lifts and heating solutions.
Watch the video to discover our weather resistant lift concept!
Low Top Height
To resist to the changing weather, your lift needs a roof to protect it. But even including the outdoor roof, the top height of the lift does not exceed 2,5 m.
No Lift Pit is Needed
All your outdoor lift needs for installation is a good and drained foundation. You then install the lift directly on the foundation, or with a shallow pit of 5 cm.
Machine Room Less Lift
Our platform lifts have a compact construction. That also goes for the machinery, which fits inside the lift shaft to avoid the need for a separate machine room.
Do you have questions?
We would love to help.
Let us guide your to the perfect lift solution for your home or business.
The Lift Platform
The platform control panel has an ergonomic design, which includes floor buttons, an alarm button and an emergency stop button. To keep you safe at all times, the elevator platform is also equipped with safety edges, an emergency phone and battery emergency lowering as standard.
According to European Standards, the floor buttons operate with hold-to-run (constant pressure on the button), while the call buttons on the doors run with automatic drive (one-touch). For countries outside of Europe, other standards may apply. Please contact us, or your closest Kalea dealer, for more information.
Space-saving Lift Solution
If you need a lift but have no room for it inside, installing one outdoors is a great option. Our outdoor elevators not only offer you comfortable access to your outdoor areas but preserve your indoor space . Thanks to our compact, ready-made lift concept, the lift will integrate seamlessly with your property, requiring only minor building alterations.
Would you still prefer to have your lift inside? Then the Kalea Luna could be the perfect lift solution for you. The Kalea Luna comes in a wide range of platform sizes and the smallest size fits in just 1m2!
Flexible Door Access
Does your property require a lift with doors on several sides of the shaft? No problem! Our outdoor elevators can have doors on all sides of the lift shaft, except on the machinery side.
This photo shows an example of a lift with adjacent (90 degree) access.
Outdoor Lift Solutions

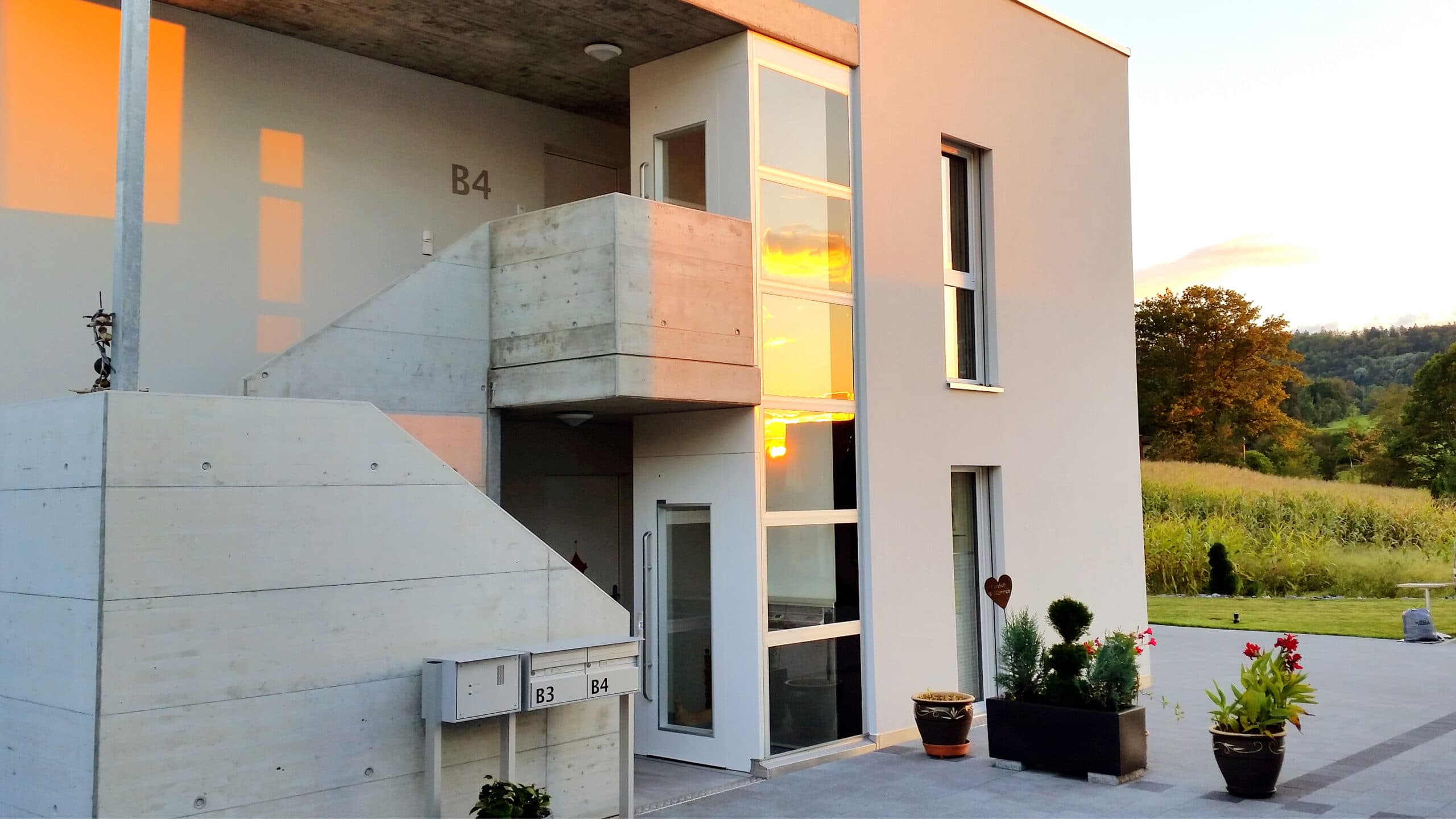

Whether you want to install your lift in a corner, against the facade or against a balcony, we can provide you with an outdoor solution that works. Check out these examples, sold and installed by our trusted partners Alma, Meier & Co, AAM, and NG Services.
Plexiglas Door Canopies
If the elevator doors are exposed to the elements, they need to be protected. To that effect, we offer you elegant door canopies in plexiglas. Designed to blend in, the plexiglas canopies are available with rims in the same colour as the elevator.
In addition, the plexiglas canopies can be equipped with LED light to light your way at night.
Steel Door Canopies
For changing climates, where large amounts of rain or snow can be expected, the sturdy steel canopies provide great protection for the outdoor elevator doors. The steel canopies have a beautifully curved shape, and can be painted to match the colour of the elevator.
Blend in or Stand Out?
Our outdoor lifts offer you almost endless design possibilities. Do you want the lift to blend in with the building or do you prefer a contrasting colour? Whatever you decide, your wish is our command. We can deliver your lift in more than 250 different colours!
Sustainable Outdoor Elevators
Every day, we make efforts to improve the sustainability of our production, reducing waste and pollution, and designing lifts that are as recyclable and easy to upgrade as possible. We do this, not only with the current generation in mind, but also the future ones.
Learn more about our sustainability work!
If You Need Inspiration
If you need some ideas and inspiration, we invite you to discover this award winning installation of a Kalea outdoor lift in France. This project has a heart warming story and the result looks absolutely stunning. It also won our partner AAM an award at the Trophée de l’Ascenseur in 2019.
Do you have questions?
We would love to help.
Let us guide your to the perfect lift solution for your home or business.
The product information on this website is general, and we reserve the right to modify product design and specifications. All images of lifts and samples are displayed for inspirational purposes only and deviations in colour reproduction may occur. For critical colour matches, physical painted samples and physical floor samples are recommended. Kalea Lifts is a brand owned by © Cibes Lift Group AB.
Specifications and model details
Technical information
- Installation:Outdoor
- Rated load:400/500 kg
- Power supply:1 × 230 VAC, 50 Hz, 16 A, min. 3 × 2,5 mm², 3 × 230 VAC/3 × 400 VAC, 50 Hz, 16 A, min. 5 × 2,5 mm²
- Speed:Max 0.15 m/s
- Min headroom:Depends on lift configuration
- Lift pit:50 mm or 0 mm with access ramp
- Drive system:Screw and nut
- Max travel:15 m
- Max number of stops:6
- Lift controls:Automatic drive (one-touch) on landings, hold-to-run on platform
- Motor Power:2.2 kW
- Machine room:Integrated (MRL)
- Door configuration:Single entry/open-through access/adjacent access
- Directives and standards:MD 2006/42/EC, EN 81-41
Complete specifications and lift sizes
Check out the full Complete specifications and model details of Outdoor Lift.
View specifications
