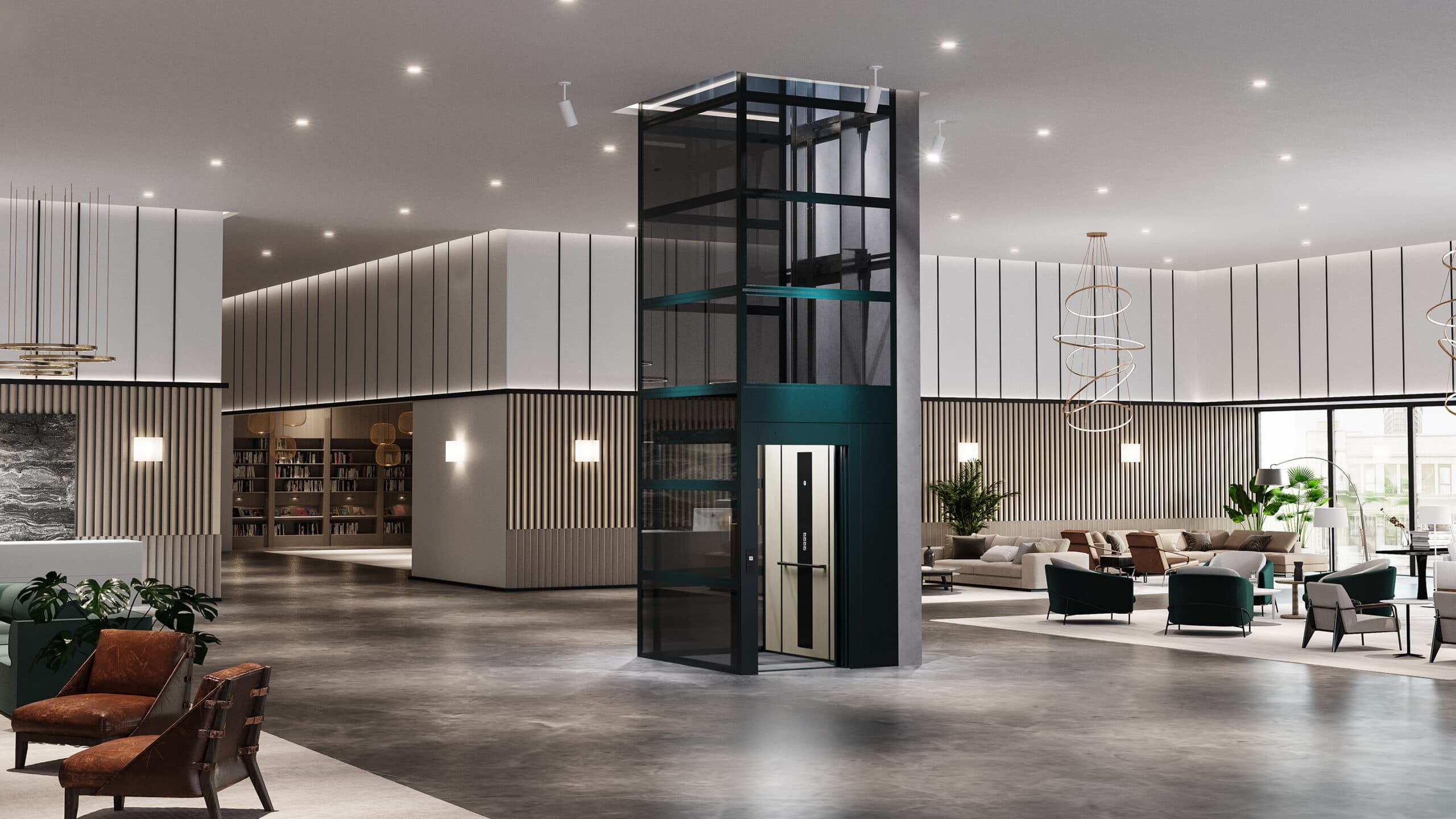

Kalea elevator solutions

Lift Solutions for Every Need

We specialise in high-quality, screw-driven lift solutions for all kinds of applications. From compact residential lifts and wheelchair accessible public lifts, to large warehouse lifts, we can provide the solution you need. Thanks to our ready-made, space-efficient concept, our lifts are easy to integrate with both new and existing buildings. In addition, our elevating solutions have a flexible design that will adapt to most architectural styles, budgets and legal requirements. We invite you to explore our wide range of platform lifts, cabin lifts and goods lifts.

Kalea A4 Primo office lift

Reasons to Buy a Lift

There are many good reasons to buy a lift. Not only will a lift make all the floors of your property accessible to everyone, regardless of their physical ability. It will also increase the real estate value and make your property more attractive to potential buyers or tenants.

In addition, lifts and elevators are also very handy for transporting merchandise, furniture and laundry between floors. Regardless of whether you are a homeowner, property developer, or a business owner, buying a lift is a smart investment.

Cargo lifts by Kalea
Hip woman in a wheelchair
Man moving furniture
Woman carrying laundry basket

Why choose Kalea lift solutions?

Limited space? Low ceilings? No patience to wait for several months for your lift to be installed? That is no problem! Our space-saving, ready-made lift solutions can be manufactured in as little as 3-4 weeks and installed in just 2-3 days.

Exploded view of black platform lift Kalea Luna with a glass shaft against a white background.

All-inclusive Lift Concept

Thanks to our all-inclusive, ready-made concept, our lift solutions can be manufactured, delivered and installed a lot faster than conventional elevators. For most of our lift models, even the lift shaft is included!

Silver-grey Kalea home lift with a partially glazed shaft installed in a modern metal staircase inside a stairwell with white walls.

Space-saving Elevator Solutions

Because our elevator solutions require neither lift pit, top machinery, nor a separate machine room, they have a much smaller footprint and require a lot less building work than conventional elevators.

Do you have questions?

We would love to help.

Let us guide your to the perfect lift solution for your home or business.

What is the best lift type?

The best lift type is the one that best suits your requirements and needs, in terms of size and function, and we will do our best to guide you. The first things you need to ask yourself are: What will the lift be used for, and in what kind of setting?

Kalea elevator solutions

Lifts for Public Accessibility

If you are looking for a public lift solution, that complies with European European Accessibility Standards, you will need a platform size of minimum 900 x 1400 mm (w x d), or a cabin size of 1100 x 1400 mm (w x d). Kalea offers a wide range of platform and cabin lifts that are compliant with European Accessibility Standards.

Orange Kalea Luna residential lift in an old 19th century apartment living room with beige walls, brown herringbone parquet flooring, modern furniture and art.

Lifts for Private Residences

For lifts in private residences, the size you pick is entirely up to you. However, if you need a wheelchair-friendly home lift, a good tip is to take measures of your wheelchair to make sure that it fits comfortably inside the lift, including maneuvering space. All Kalea platform and cabin lifts are great choices for your home.

Kalea A4 Mille stretcher lift

Lifts for Goods & Stretchers

To suit the needs of some public and commercial settings, you need to go big. For lifts intended for large goods, we recommend a platform size of at least 1100 x 1900 mm (w x d), and for lifts that need to carry stretchers,1400 x 2400 mm (w x d). Kalea offers you goods lifts in the right sizes that have a load capacity of 1000 kg.

Frequently Asked Questions

  • Do you need planning permission for a lift?

    Yes, in most countries you will need planning permission to install a lift, regardless of whether it is placed in a public or commercial building or in your home. To get help and guidance, contact the local authority that grants planning permissions, or talk to your Kalea dealer.

  • How much energy does an elevator use?

    How much energy an elevator consumes depends on the drive system and capacity of the elevator as well as on how often it is used. While large, high-speed passenger lifts in high-rise buildings can consume as much as 30 – 40 000 kWh per year, a home lift will consume considerably less.

    Our screw-driven lifts with standard drive carry Energy Label B when operating, and Energy Label A when idle. Given that screw-driven are not designed to be used as often as conventional passenger elevators, the energy consumption is comparatively low, even with our standard drive.

    To give you an example a 2-stop Kalea platform lift with a standard drive, performing 20 travels per day, has an energy consumption of approximately 480  kWh/year.

    If you want an even more energy-efficient lift, our optimised EcoSilent drive system requires 45% less energy than the standard drive and has a yearly consumption of approximately 215 kWh/year.

  • What are the different types of elevators?

    There are many different types of elevators, such as traction lifts, hydraulic lifts, belt-driven lifts, vacuum lifts, and screw-driven lifts.

    All lift types have their pros and cons. Below we have listed a few examples:

    • Traction lifts can travel fast, from 0.6 metres to several metres per second, but also need a lot of room, given that they require a deep lift pit, a lot of headroom, and often also a separate machine room.
    • Hydraulic lifts are not as fast as traction lifts, but can still reach a speed of about 1 metre per second. This lift type generally has a deep pit but requires less headroom than traction lifts. Some hydraulic elevators also need a large, external hydraulic tank.
    • Vacuum lifts, on the other hand, have a speed of about 0.2 metres per second. Vacuum lifts are space-efficient, but the technology is expensive, and their lifting capacity is limited.
    • Screw-driven lifts travel at a speed of 0.15 metres per second but take up a lot less room than conventional hydraulic lifts and traction lifts. There are screw-driven lifts with a lifting capacity from about 300 kg, up to 1000 kg.

    Kalea’s screw-driven lifts can be installed without a pit and have a top height (the height of the lift on the top floor) of only 2.25-2.35 metres. In addition, the machinery is compact enough to fit inside the lift shaft, making the whole construction very space-efficient compared to conventional lifts.

    To learn more about different types of lifts, click here.

  • What is a screw-driven lift?

    The mechanics of a screw-driven elevator are simple and ingenious: The platform or cabin of the lift is attached to a drive nut moving up and down the screw, powered by an electric motor. When the motor turns one way, the drive nut makes the lift go up, and when the motor turns the other way, the drive nut makes the lift go down.

    Benefits of screw-driven lifts

    • The screw and nut drive system is very safe and reliable. Thanks to its simplicity and the limited number of moving parts, there is very little that can go wrong.
    • While hydraulic lifts are sensitive to changes in temperature and humidity, the robust mechanics of screw-driven lifts will continue to function.
    • In addition, the screw-driven system is compact enough to fit inside the lift shaft, which is why this type of lift requires no separate machine room, nor extra headroom.
    • Another advantage is that most lifts with screw and nut drive do not need a lift pit.
    • Screw-driven lifts have a long lifespan (25-30 years with proper maintenance).

    Low-maintenance drive system

    The screw and nut system requires less maintenance than hydraulic, belt-driven or traction lifts. However, the frequency of maintenance is determined by how often the lift is used and lubrication is key to keeping the system in good health. That is why our lifts are equipped with an automated lubrication system for the screw as standard.

    Screw-driven goods lifts

  • Do lifts make noise?

    The answer is yes, all lifts make some noise, but if properly maintained they operate quietly enough to blend in with the sounds of everyday life. You can compare it to other household appliances, such as dishwashers, fridges, or ventilation systems. They also generate sounds, but you just do not think about it.

    To offer you a quiet ride most recent platform lift models by Kalea come with optimised drive systems as standard and for the majority of our older models, an optimised drive is available as an option. But what is quiet? To give you an example, a few metres from the lift, the Kalea EcoSilent drive system only generates a sound of about 40 dB or the equivalent of the sound level inside a quiet library.

Find More Answers
White Kalea A4 Primo home lift with glass shaft installed in a duplex, penthouse flat with with white and grey walls, modern black and grey furniture and view over cityscape.

Kalea Platform Lifts

  • Platform sizes from 600 x 830 mm – 1100 x 1597 mm (w x d)
  • Rated load: 300 kg (max 3 persons) – 500 kg (max 5 persons)
  • Indoor or outdoor installation
  • Always comes with a ready-made lift shaft
  • No separate machine room, no lift pit
  • Min headroom: 2300 mm with standard single-hinged doors
  • Platform controls: hold-to-run*
  • Landing controls: automatic drive

*According to European Standards. For countries outside the EU, automatic drive may be allowed.

Platform Lifts by Kalea
Cabin elevator solutions

Kalea Cabin Lifts

  • Cabin sizes from 900 x 950 mm -1100 x 1700 mm (w x d)
  • Rated load: 300 kg (max 3 persons) – 630 kg (max 8 persons)
  • Indoor installation only
  • Available with, or without, a ready-made lift shaft
  • No separate machine room, lift pit of only 100 mm
  • Min headroom: 2500 mm with standard sliding doors
  • Cabin controls: automatic drive
  • Landing controls: automatic drive
Cabin Lifts by Kalea
Boot's edges

Kalea Goods Lifts

  • Platform sizes from 1105 x 2180 mm – 1405 x 2480 mm (w x d)
  • Rated load: 1000 kg (Max 10 people)
  • Indoor installation only
  • Always comes with a ready-made lift shaft
  • No separate machine room, no lift pit
  • Min headroom: 2350 mm with standard single-hinged doors
  • Platform controls: hold-to-run*
  • Landing controls: automatic drive

*According to European Standards. For countries outside the EU, automatic drive may be allowed.

Goods Lifts by Kalea
How to buy a lift

Lift Buyer's Guide

Finding the right elevator solution for your project might seem challenging at first, but our Lift Buyer’s Guide makes it easy. Let us guide you through every step of the buying process!

To lift buyer's guide
Kalea lift configurator

Build Your Lift

Your design choices will create the perfect lift for your specific project. Try out different colours and materials with our lift configurator tool to visualise the design of your lift!

Kalea lift configurator
Kalea Lifts factory

Lifts Made in Sweden

Kalea was founded in Gothenburg, on the Swedish West Coast in 1898. After more than 100 years in the lift business, our lifts are still manufactured in Sweden and our brand is stronger than ever!

Learn more about Kalea

Elevator solutions by Kalea

Do you have questions?

We would love to help.

Let us guide your to the perfect lift solution for your home or business.

Elevating everyday life.
